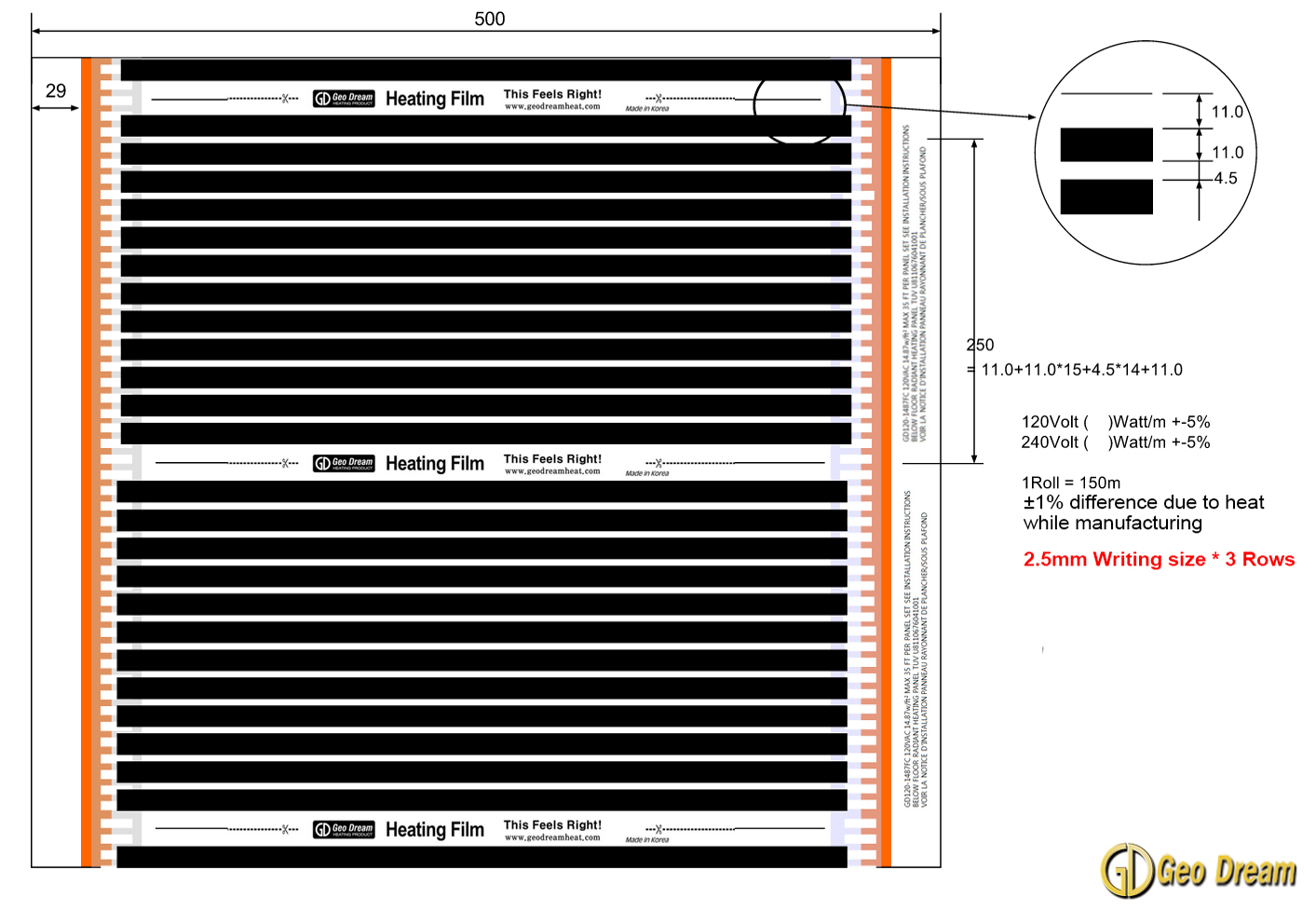

50cm width film

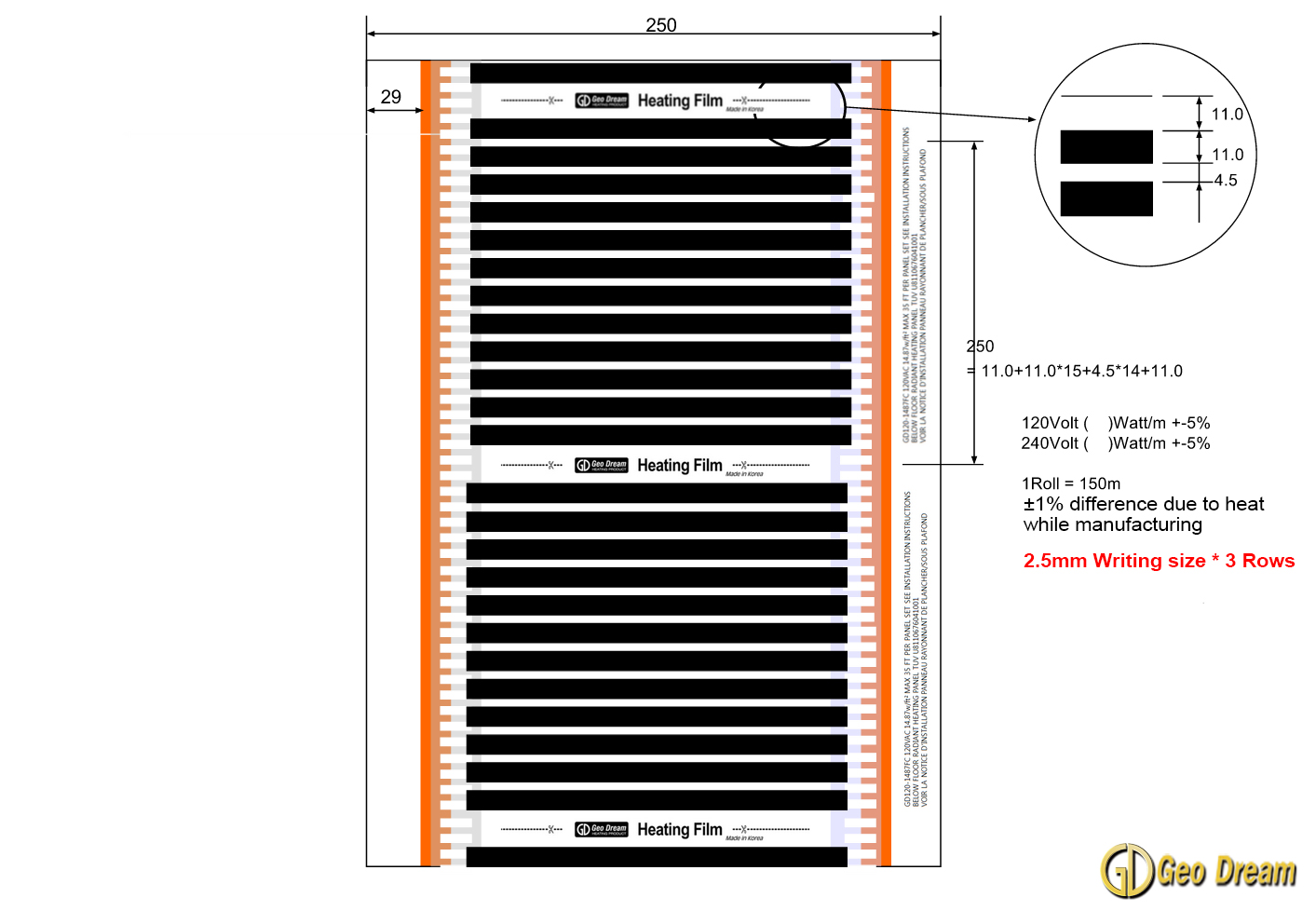

25cm width film

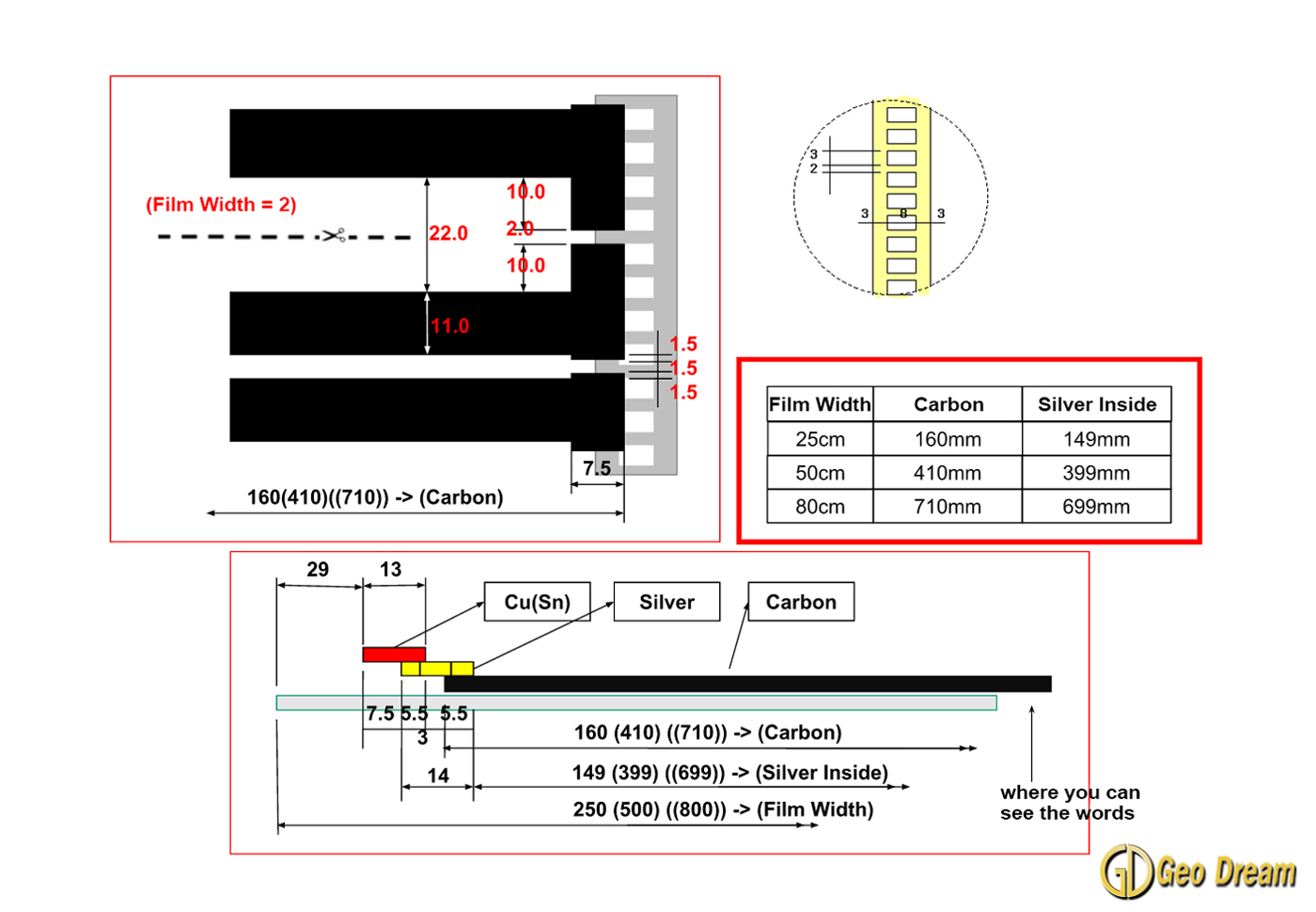

Structure

Far infrared heat is generated from carbon fiber strips that are attached to silver contact bus bars connected to copper electrical strips. The silver provides superior electrical current transmission while preventing arcing

at contact points.

The components are then completely sealed between two plastic sheets of PET film - similar to soda bottle material, the film is thin, transparent, and very durable. All the components used making film are UL listed.



Part

Function

Material

Production Standard



Insulating

Base Film

PET Insulation and Moisture Barrier. Component is UL listed.

Laminating Film

Heating Carbon Doping Carbon Maintaining resistance, even print surface. Component is UL listed
Conductive Bus Bar Copper Maintaining conductivity and adhesion. Component is UL listed.
Doping Silver





Electrical

240 volt, 13.0 watt

Draws less than .054 amps per square foot and delivers 13.0 watts of heat per square foot

120 volt, 13.0 watt

Draws less than .108 amps per square foot and delivers 13.0 watts of heat per square foot





Dimensions

All films are 0.347 mm Thick.

Area

860ft2/roll 806ft2/roll 269ft/roll

Width

80cm(31.49") 50cm(19.68") 25cm(9.84")

Length

100m(328') 150m(492.2') 100m(328')
