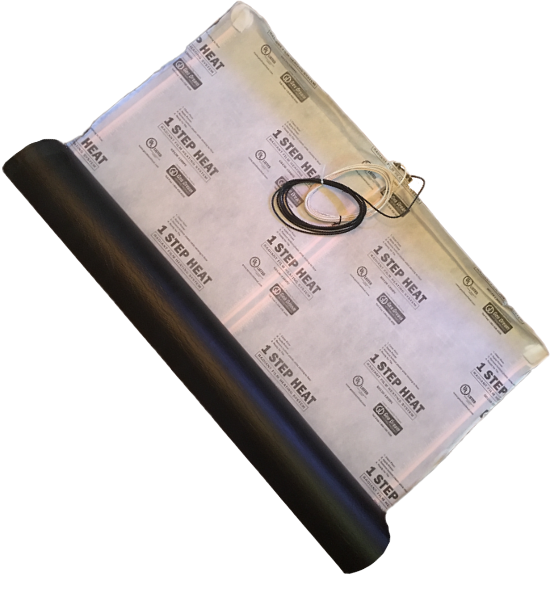

1 STEP HEAT

Clean, Peel, Stick!

Installation of 1 STEP HEAT is very easy!

  1. Clean, sweep, and level the installation area.
  2. Open the 1 STEP HEAT box and peel the sticker backer off the film mat.
  3. Stick the 1 STEP HEAT on the prepared surface and connect wires to the thermostat.

Structure

Far infrared heat is generated from carbon fiber strips that are attached to silver contact bus bars connected to copper electrical strips. The silver provides superior electrical current transmission while preventing arcing at contact points.

The components are then completely sealed between two plastic sheets of PET film - similar to soda bottle material, the film is thin, transparent, and very durable. This film is then sealed into a ready to install mat that is perfect for installing under tile floors. All the components used making film are UL listed.

Part

Function

Material

Production Standard


Insulating

Base Film

 PET Insulation and Moisture Barrier. Component is UL listed.

Laminating Film
Heating Carbon Doping Carbon Maintaining resistance, even print surface. Component is UL listed
Conductive Bus Bar Copper Maintaining conductivity and adhesion. Component is UL listed.
Doping Silver
